Solid Tyres
Solid OTR Tyres
Browse 23 verified solid OTR configurations and one separately listed industrial solid tyre. Final equipment matching and operating requirements are confirmed before ordering.
Product programme
Solid OTR Tyres overview
Verified specification tables and working filters are published below. Product photography, MOQ and commercial availability are confirmed during enquiry.
Product family

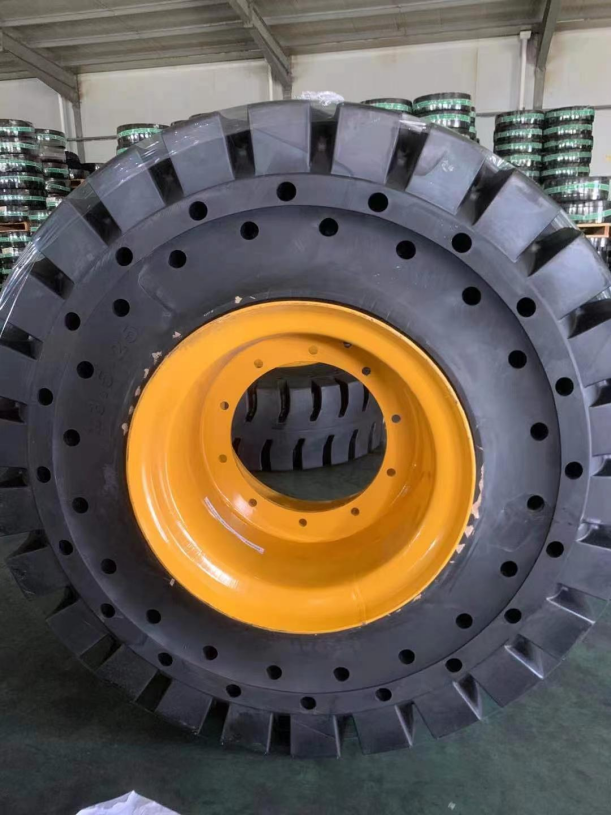

Aperture-Type Solid OTR Tyres
With-holes configurations are identified directly in the published specification table.
Product family
Standard Solid OTR Tyres
Solid-section configurations for compatible heavy industrial and off-road equipment.
Product images supplied for this catalogue are shown where a clean category match is available. Neutral panels mark the remaining images to be provided.
Selection guidance
Applications and configuration
Use these product-family guidelines to narrow the enquiry. Final compatibility is confirmed against the equipment, wheel and working conditions.
01
Heavy equipment
The range includes sizes for selected loaders, dump vehicles, cranes and industrial handling equipment.
02
Demanding surfaces
Solid construction is suited to locations where sharp debris and abrasive ground create puncture risk.
03
Industrial environments
Potential applications include ports, mines, steel and slag yards, glass plants and ceramic facilities.
04
Configuration matching
With-holes and standard constructions must be selected against load, speed, rim and working conditions.
Verified technical data
Solid OTR tyre specifications
Browse 23 solid OTR configurations verified against GREATWAY’s 2026 Solid Tires Catalog. Blank load fields remain unpublished and final equipment matching must be confirmed.
Showing 23 of 23 specifications
Dimensions in mm · load capacity in kg
| Tyre size | Rim | Pattern | Dimensions | 10 km/h | 16 km/h | 26 km/h | Other forklift 16 km/h | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | SW | Drive width | Drive | Steer | Drive | Steer | Drive | Steer | ||||
| 6.50-16 | 5.50 | GY-101 | 723 | 157 | 148 | 2,950 | 2,215 | 2,810 | 2,110 | 2,605 | 1,955 | 2,080 |
| 7.50-16 | 5.5/6.0/6.5 | GY-101 | 787 | 187 | 174 | 3,910 | 3,130 | 3,780 | 2,835 | 3,520 | 2,640 | 2,700 |
| 8.25-16 | 6.50 | GY-103 | 825 | 218 | 211 | 4,980 | 4,000 | 4,720 | 3,750 | 4,440 | 3,330 | 2,850 |
| 9.00-16 | 6.50 | GY-101 | 844 | 216 | 201 | 5,135 | 4,110 | 4,965 | 3,725 | 4,625 | 3,470 | 3,550 |
| 20.5/70-16 | 10.00 | GY-105 | 895 | 284 | 277 | 6,450 | 5,350 | 6,150 | 4,890 | 5,870 | 4,550 | 4,700 |
| 355/50-20 | 10.00 | NEW PATTERN | 825 | 322 | 308 | 10,120 | 8,150 | 9,550 | 7,520 | 8,970 | 6,900 | 7,520 |
| 33x8-20 | 6.50 | E3 | 820 | 198 | — | 5,870 | 5,633 | — | — | 4,310 | 4,070 | — |
| 36x12.5-20 | 9.00 | E3 | 895 | 291 | — | 6,530 | 6,070 | — | — | 6,255 | 5,785 | — |
| 41x14-20 | 11.50 | GY-101 | 1,040 | 352 | — | 9,334 | 7,535 | — | — | 8,487 | 6,580 | — |
| 16/70-20 | 13.00 | GY-105 | 1,016 | 388 | 377 | 9,445 | 6,655 | — | — | 8,600 | 6,700 | — |
| 14.00-20 | 10.00 | GY-106 | 1,220 | 321 | 298 | 10,800 | 8,640 | 10,430 | 7,840 | 9,730 | 7,315 | 7,450 |
| 38.5x14-20 (14x17.5)With holes | 11.00-20 | GY-105 | 966 | 350 | — | — | — | — | — | — | — | 6,360 |
| 12.00-24 | 8.50 | GY-104 | 1,178 | 287 | 280 | 9,125 | 7,605 | 8,335 | 6,945 | 7,740 | 6,450 | 6,450 |
| 14.00-24 | 10.00 | GY-106 | 1,348 | 323 | 305 | 12,760 | 10,210 | 12,320 | 9,240 | 11,460 | 8,595 | 8,800 |
| 385/65-24 (385/65-22.5)With holes | 10.00-24 | GY-105 | 1,062 | 356 | — | — | — | — | — | — | — | 6,650 |
| 445/65-24 (445/65-22.5)With holes | 12.00-24 | GY-105 | 1,152 | 428 | — | — | — | — | — | — | — | 9,030 |
| 16.00-25 | 11.25/2.0 | L-5 | 1,365 | 370 | 352 | 16,860 | 13,490 | 15,170 | 11,400 | 13,840 | 10,130 | 12,130 |
| 17.5-25 | 14.00/1.5 | GY-106 | 1,327 | 413 | 394 | 13,000 | 10,500 | 11,000 | 8,000 | 8,500 | 7,000 | 12,220 |
| 18.00-25 | 13.00 | GY-106 | 1,620 | 500 | — | 21,200 | 16,960 | 20,480 | 15,400 | 19,100 | 14,360 | 14,360 |
| 20.5-25 | 17.00/2.0 | GY-106 | 1,436 | 485 | 458 | 15,000 | 11,000 | 13,000 | 8,560 | 10,000 | 7,500 | 16,900 |
| 23.5-25 | 19.50/2.5 | GY-106 | 1,570 | 543 | 520 | 19,500 | 14,500 | 17,000 | 13,000 | 13,500 | 11,500 | 21,260 |
| 26.5-25 | 22.00/3.0 | L-5 | 1,680 | 620 | 620 | 39,300 | 31,400 | 39,300 | 31,400 | 35,400 | 26,600 | — |
| 29.5-25 | 25.00 | E3 | 1,840 | 730 | — | 48,100 | 37,055 | 43,880 | 33,800 | 40,340 | 31,265 | 31,265 |
“—” indicates that the field is blank in the 2026 catalogue. Final fitment, load requirements and product availability must be confirmed before ordering.
Other industrial vehicles
Industrial solid tyre specification
A separately listed industrial-vehicle configuration from the verified catalogue.
| Tyre size | Rim | Pattern | Overall diameter (mm) | Section width (mm) | Tread depth (mm) | 10 km/h drive (kg) | 10 km/h steer (kg) |
|---|---|---|---|---|---|---|---|
| 465/55-20 | 16.00-20 | GY-101W | 1,040 | 465 | 46 | 13,000 | — |
“—” indicates that the field is blank in the 2026 catalogue.
Buyer information
What to include in your enquiry
01
Model or tyre size
Include the full marking, rim information or equipment model where available.
02
Quantity
List the required quantity for each size or model.
03
Working conditions
Share equipment, surface, load, duty cycle and any special requirements.
04
Destination
Provide the destination port and preferred FOB, CFR or CIF term.
Request a quotation for Solid OTR Tyres
Include tyre sizes, quantities, destination port and preferred Incoterm. GREATWAY can also review model lists and reference photos.
