Solid Tyres
Skid Steer Solid Tyres
Browse seven verified GY-105 skid-steer solid tyre configurations across web-type and rim-type constructions. Final equipment matching is confirmed for each enquiry.
Product programme
Skid Steer Solid Tyres overview
Verified specification tables and working filters are published below. Product photography, MOQ and commercial availability are confirmed during enquiry.
Product family

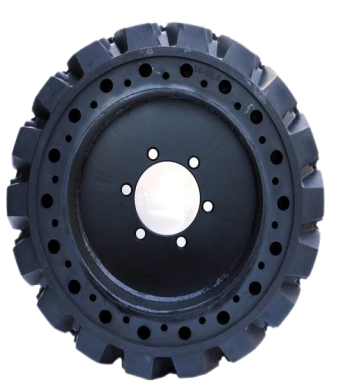

Rim-Type Skid-Steer Solid Tyres
A solid tyre supplied with a compatible rim configuration, subject to equipment matching.
Product family
Web-Type Skid-Steer Solid Tyres
An open-web construction for selected skid-steer applications and demanding surface conditions.
Product images supplied for this catalogue are shown where a clean category match is available. Neutral panels mark the remaining images to be provided.
Selection guidance
Applications and configuration
Use these product-family guidelines to narrow the enquiry. Final compatibility is confirmed against the equipment, wheel and working conditions.
01
Construction sites
Solid constructions remove air-loss risk when operating around debris, gravel and uneven ground.
02
Agriculture and municipal work
Available configurations cover skid-steer work on fields, yards and paved service areas.
03
Industrial yards
Pattern and construction selection should reflect surface, impact, traction and duty-cycle requirements.
04
Two constructions
Choose between web-type and rim-type products after confirming the machine model and wheel data.
Verified technical data
Skid steer solid tyre specifications
Browse seven GY-105 configurations across web-type and rim-type constructions, verified against GREATWAY’s 2026 Solid Tires Catalog.
Showing 7 of 7 specifications
Dimensions in mm · load capacity in kg
| Construction | Tyre size | Rim | Pattern | Diameter | Section width | Drive width | 10 km/h drive | 10 km/h steer | 26 km/h drive | 26 km/h steer |
|---|---|---|---|---|---|---|---|---|---|---|
| Web type | 10-16.5 (31x6x10) | 10-16.5 | GY-105 | 756 | 255 | 239 | 4,230 | 3,080 | 3,630 | 2,680 |
| Web type | 12-16.5 (33x6x11) | 12-16.5 | GY-105 | 820 | 273 | 264 | 4,575 | 3,875 | 3,815 | 3,400 |
| Web type | 20.5/70-16 (36x7x11) | FB | GY-105 | 895 | 284 | 277 | 6,450 | 5,350 | 5,870 | 4,550 |
| Rim type | 30x10-16 | 6.00 | GY-105 | 744 | 234 | 234 | 4,326 | 3,245 | 3,933 | 2,950 |
| Rim type | 33x12-20 | 8.00 | GY-105 | 833 | 276 | 276 | 5,929 | 4,447 | 5,390 | 4,045 |
| Rim type | 10-16.5 | 8.00 | GY-105 | 756 | 255 | 239 | 4,230 | 3,080 | 3,630 | 2,680 |
| Rim type | 12-16.5 | 9.75 | GY-105 | 820 | 273 | 264 | 4,575 | 3,875 | 3,815 | 3,400 |
Buyer information
What to include in your enquiry
01
Model or tyre size
Include the full marking, rim information or equipment model where available.
02
Quantity
List the required quantity for each size or model.
03
Working conditions
Share equipment, surface, load, duty cycle and any special requirements.
04
Destination
Provide the destination port and preferred FOB, CFR or CIF term.
Request a quotation for Skid Steer Solid Tyres
Include tyre sizes, quantities, destination port and preferred Incoterm. GREATWAY can also review model lists and reference photos.
